MIKROTIK Cloud Router Switch (CRS320-8P-8B-4S+RM)
4x 10G SFP+ ports | 17x Gigabit LAN ports (1-8 with 802.3af/at PoE-out, 9-16 with 802.3bt PoE-out) | 1x Selial console port | Up to 90W PoE power per port | Total power budget 1150W (with optional 2nd PSU G1483-0600WNB) | RouterOS (Licence level 5)
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 358.19£ | 429.83£ | >0£ |
| 355.13£ | 426.16£ | >300£ |
| 349.01£ | 418.81£ | >1000£ |
Features:
The first MikroTik high-power PoE++ switch – for easy and cost-effective powering of industry standard 802.3af/at/bt devices. Forget about countless power cables – create a cleaner space with PoE++!
Cable management can get really exhausting. But it doesn’t have to. PoE++ or 802.3bt switch can make your cable management so much easier, as it can output enough power for all your hotel, conference hall, office and high-rise building needs!

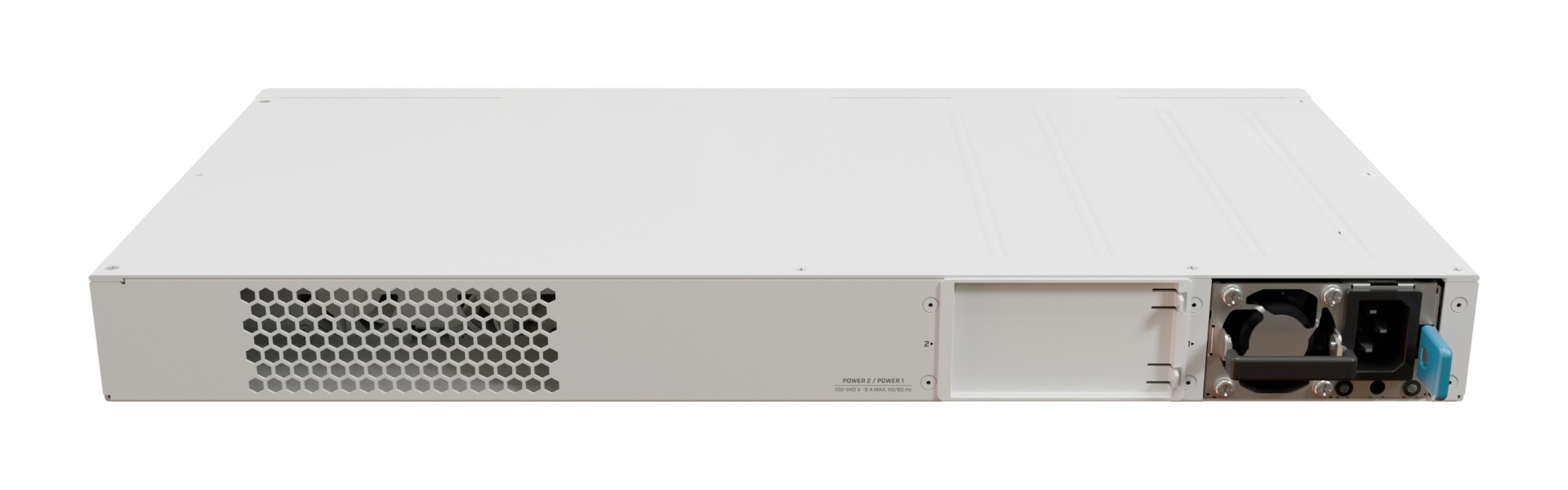

4K security cameras with built-in winter heating elements, LED ad screens, PoE-powered light fixtures – CRS320 can output up to 90W per port, enough even for the most demanding devices! It comes with a reliable 600 W power supply, but we’ve reserved an expansion slot for an additional PSU, in case you need to raise the power output to 1150 W.

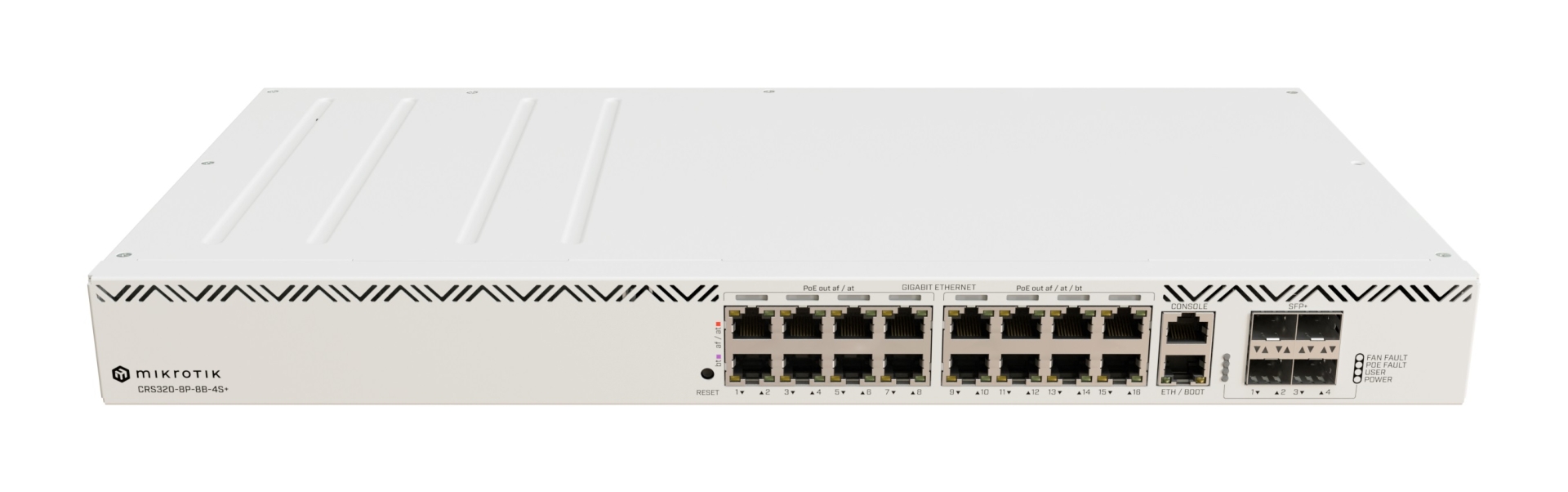

There are 17 Gigabit Ethernet ports: #1 - #8 Gigabit Ethernet ports with 802.3af/at PoE-out, #9 - #16 802.3bt PoE++ ports, and an extra Gigabit Ethernet port for management purposes. There’s also a console port, and four 10G SFP+ fiber ports for uplink.
At its core, this convenient switch has a phenomenal Marvel switch-chip – the same one you’ve seen in ISP bestsellers like the netPower 16P and netFiber 9! It can handle the heaviest loads, including VLAN-filtering and hardware-offloaded Layer-3 routing.
If you’ve been looking for a way to simplify your cable management – this is it! With a single CRS320, you can ditch that endless mess of DC power adapters and start living the clean minimalist PoE dream.
Specification:
| Product code | CRS320-8P-8B-4S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX226S |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 98DX226S |
| RouterOS license | 5 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 32 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -10°C to 50°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Frequency (Hz) | 47-63 |
| Max power consumption | 1150 W |
| Max power consumption without attachments | 36 W |
| Cooling type | 3 fans |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether9-Ether16 (bt) |
| PoE out | 802.3af/at/bt |
| Max out per port output (input 30-57 V) | 560 (af/at) / 1667 (bt) mA |
| Max total out (A) | 17.82 A |
| Total output current | 17.82 |
| Total output power | 963 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 17 |
| Number of 1G Ethernet ports with PoE-out | 16 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 4 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
